ground heave solutions and permanent formwork

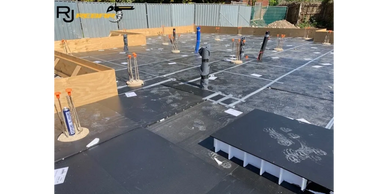

Combats the Effects of Ground Heave on

Foundations and Slabs. Ground heave

is primarily caused by the rehydration

of clay or expansive shale soils,

overburden recovery resulting from

deep excavations, mining or trees and

vegetation.

  All Swiftform panels are steel reinforced to give added strength and are made to your exact specification. A full take off service is provided from site drawings Swiftform is cost effective and easy to install. It can be used on groundbeams, pile caps & many more applications. It replaces timber shuttering and provides less concrete waste.

Claymaster is a Pink coloured low density

expanded polystyrene compressible fill

board, which acts to absorb movement

between ground and concrete foundations

to alleviate pressure on structures caused

by clay heave, shrinkage or other soil

movement.

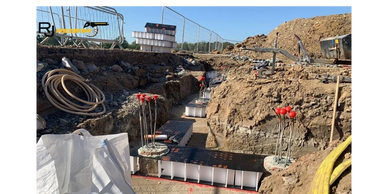

Pile collars are an effective solution to

maintain ground heave protection around

complex pile areas. The use of pile collars

together with Pecavoid and Claylite,

will maintain a clear void and prevent the

effects of clay heave.

  Combats the Effects of Ground Heave on

Foundations and Slabs. Ground heave

is primarily caused by the rehydration

of clay or expansive shale soils,

overburden recovery resulting from

deep excavations, mining or trees and

vegetation.

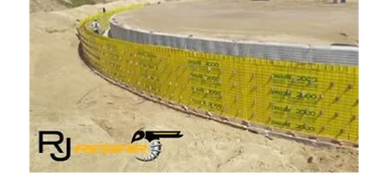

  The Pecafil® formwork elements can be used

universally for many purposes, above all as formwork for foundations and ribbed slabs as well as sheeting for building pits. It is also suitable in the transparent version for weather, dust and protection screens.The material is available in different thicknesses. Thanks to its light weight it is easy to lay by hand. The elements can be shortened and adapted on the building site using simple tools. Pre-configuration of the formwork system in our factory is possible. Pecafil®permanent formwork is environmentally

friendly, groundwater-neutral and recyclable.
